2018 high speed Horizontal hydraulic arc bed machine

Payment Type: L/C,T/T
Incoterm: FOB,CIF
Min. Order: 1 Set/Sets
Delivery Time: 35 Days
Send Inquiry

Basic Info

Model No.: customer request

Tile Type: Colored Steel

Certification: CE, ISO

Condition: New

Customized: Customized

Usage: Roof, Wall

Transmission Method: Machinery

Roller Material: Cr12

Surface Of Roller: Heat Treatment HRC58-60

Measuring Accuracy: +/- 0.5 Mm/M

Output: 8-10 Tons Per Shift (8 Hrs.)

Control System: HMI & PLC Control Panel.

Additional Info

Packaging: The body of the main machine is nude, spare parts are water-proof plastic film packaged.

Productivity: 30sets/month

Brand: dixin

Transportation: Ocean

Place of Origin: Hebei, China

Supply Ability: 30 sets/month

Certificate: ISO/9001

HS Code: 84552210

Port: Tianjin

Product Description

Product description

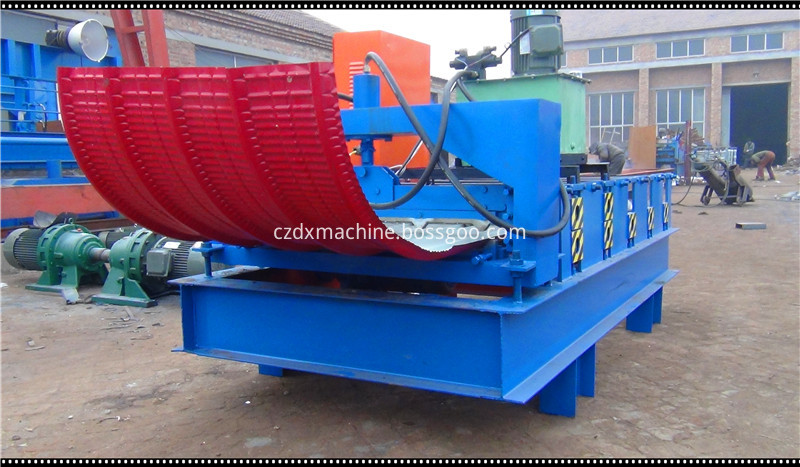

2018 high speed Horizontal hydraulic arc bed machine

The roll forming machine is for steel sheet or aluminum sheet. It can form the sheet according to customer`s requirement.It is a new type of energy - saving and high -effective producing equipment for steel roof or wall panel.And it has many advantages, like high forming speed, stable and easy operation. The finished product can use in various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc.

Manual Un-coiler

◊ Max Capacity: 5000kgs

◊ Inner diameter of coil: 400-600mm

◊ Manual with brake

Leveling Device

◊ Ensure the material level and straight
◊ The width can be adjusted

Main Forming System

◊ Width & Height & Thickness of sheet: According to Drawings
◊ Material: GI sheet coil or Colored sheet coil
◊ Motor Power: 5.5 kw forming system
◊ Roller material:Cr12
◊ Surface of Roller: Heat treatment HRC58-60
◊ Measuring accuracy: +/- 0.5 mm/M
◊ Safety Hood: Cage

◊Arch middle plate: 30mm thickness

◊Output: 8-10 Tons per shift (8 hrs.)

◊The machine base is assembled and welded by high quality steel

Hydraulic Cutting Device

◊ Cutting way: Tracking (Flying).
◊ Oil pump station 1set.
◊ Motor power of Oil pump station: 7.5kw with cooling system
◊ Forced air cooling device available

◊Material of blade: CR12 with heat treatment HRC60-62

Electrical System

◊ Control system: HMI & PLC control panel.
◊ Power: 440V 50Hz (as per local requirement)

Run-out Table

◊ Frame: 8# steel groove welded
◊ Roller type.
◊ Quantity: 1 pc


curved roofing sheet roll forming machine05

curved roofing sheet roll forming machine03

curved roofing sheet roll forming machine41


Packaging &Shipping

1.Packaging Details:Nude,with waterproof cloth and stow-wood. Imported computer control system packed with waterproof cloth and card board.

2.Port:TIANJIN XINGANG PortLead .

3.Time: Shipped in 35 days after payment.

ship



Our service

1.We have professional team to make different kinds of roll forming machines for our customers,
from designing, processing,assembling, debugging, delivery.
2.we can send our engineer to your site and do the training for your worker. you just only bear the cost for our engineer's air ticket,visa,accommodation,food and transpotaion in your country.

3.You can send your worker to our factory. we will teach them how to operate the machine without training charges.

4.Actually theres another cheap and easy way to choose. Every machine leave our factory with one book of operation manual. You can read through the manaul first ,and get familiar with the machine. Then we can get a video call,and teach you on-line  how to operate the machine.




Our company

Cangzhou Dixin Roll Forming Machine Co.,Ltd,Our company is the professional and leading manufacture,can manufacture ,design,installation and debug various roll forming machines and metal processing sheet equipments ,which produce metal roof wall panel,glazed roof tile , CZ steel purlin,floor desking,roof ridge cap,sandwich panel ,roof rtruss,shutter panel,shutter slat,door frame, guardrail ,and metal sheet uncoiler ,bending ,slitting,cutting,flattening,punching,crimpingl. especially can design machine according to customer's request.




FQA



 1. what is your guarantee period?

Guaranteed against malfunctions due to manufacturing defects for 12 months from the date of loading.

machine in my factory?

2.How to visit our company:

Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.

Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao  to Cangzhou Xi(4.5 hours),then we can pick up you.



We can produce too many types roofing panels roll forming machine ,especially according to your request to produce.you need provide panel drawing,feeding width,effective width,and materials thickness,

then we can send you more machine details.please feel free contact me.
